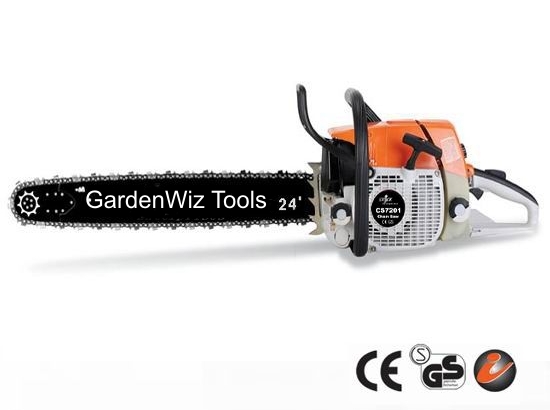

GardenWiz CS-7201 Chain Saw
(Product images illustrative only – Actual product appearance may vary slightly due to continuous process improvements in manufacturing)
| Engine: | Single cylinder – 2-stroke, air-cooled - crankcase return air scavenging | |||||
| Compression Ratio: | 7.5:1 | Displacement: 72.2cc | Max. Power: | 3.3Kw/ 7,500 rpm | ||
| Max. Speed: | (With cutting attachment) | 10,000 rpm | ||||
| Engine Speed: | (At idling) | 2,800 rpm | ||||
| Fuel Use: | 2-cycle oil/ petrol mixing ratio – 1:25 | Chain Oil: Motor oil SAE#10W-30 | ||||
| Oil Feeding System: | Automatic pump with adjuster | |||||
| Fuel Tank Capacity: | 680ml | Oil Tank Capacity: | 360ml | |||
| Ignition: CDI | Start System: Recoil | |||||
| Chain Saw Type: | Oregon | Guide Bar Type: | Sprocket Nose | |||
| Max. Cutting Length: | 58cm | Guide Bar Size: | 24 inch | |||
| Chain Saw Pitch: | 9.32mm (0.375in) | Gross Weight (without 24” guide bar): | 8.4kg | |||
| All GardenWiz Tools come with a
pre-delivery check and a 1 Year Warranty |
Local Service and Repairs/ Spare Parts | |||||
Download Product Sheet for CS-7201
