GardenWiz DZ-650 Earth Auger

Power Tools

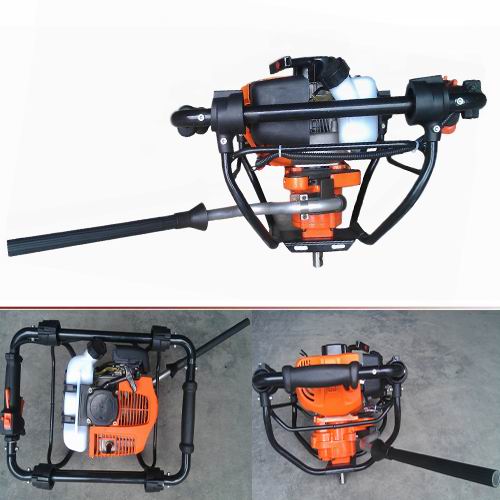

GardenWiz Tools DZ-650 earth auger/ post-hole borer

(Product images illustrative only – Actual product appearance may vary slightly due to continuous process improvements in manufacturing)

Engine:

1E44F-5B

Displacement: 60cc

Cooling System: Air Cooled

Max Power: (Kw/r/min): 1.95kw/ 7000rpm

Max Torque: (Nm/r/min): 2.45

Fuel Use:

2-cycle oil/ petrol mixing ratio – 1:25

Fuel Tank Capacity: 1.2 litres

Ignition: CDI

Start System: Recoil

Spark Plug: L7T

Boring Rotation Speed: 180 – 210 rpm

Rotation Direction: Clockwise

Transmission Type: Automatic/ Centrifugal

BT121 type vortex gearbox with brake system

Transmission Ratio: 34:1

(Brake lever to lock drill if drill jams)

Drill Bit Dimensions:

Height: 76cm/ 100cm

(Optional drill bits available at extra cost)

Width: 80, 100, 150, 200, 250, 300mm
