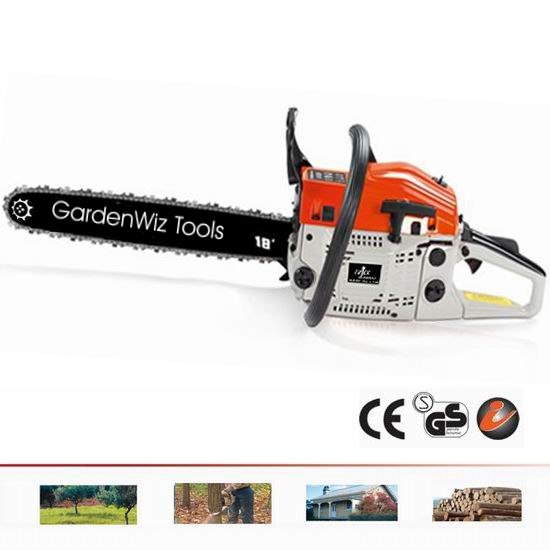

GardenWiz CS-4500 Chain Saw
(Product images illustrative only – Actual product appearance may vary slightly due to continuous process improvements in manufacturing)
| Engine: | Single cylinder – 2-stroke, air-cooled | |||||
| Compression Ratio: | 7.5:1 | Displacement: 45cc | Max. Power: | 1.8Kw/ 7,500 rpm | ||
| Max. Speed: | (With cutting attachment) | 10,000 rpm | ||||
| Engine Speed: | (At idling) | 2,800 rpm | ||||
| Fuel Use: | 2-cycle oil/ petrol mixing ratio – 1:25 | |||||
| Oil Feeding System: | Automatic pump with adjuster | |||||
| Fuel Tank Capacity: | 550ml | Oil Tank Capacity: | 260ml | |||
| Ignition: CDI | Start System: Recoil | Chain Oil: Motor oil SAE#10W-30 | ||||
| Chain Saw Type: | Carlton/Tiger/ Oregon | Guide Bar Type: | Sprocket Nose | |||
| Max. Cutting Length: | 45cm | Guide Bar Sizes: | 16in/ 18in | |||
| Chain Saw Pitch: | 0.325/ 0.375in | Sprocket: | 7T x 0.325 | |||
| Chain Saw Gauge: | 0.058/ 0.063in | Gross Weight (with 18” guide bar): | 6.5kg | |||
| All GardenWiz Tools come with a
pre-delivery check and a 1 Year Warranty |
Local Service and Repairs/ Spare Parts | |||||
Download Product Sheet for CS-4500
